- Size: 2550x3010x1700
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: HONGDA
- Model Number: HTJ-9100TCN
- Weight: 7200.000 kg
- :
- :
- :
- :

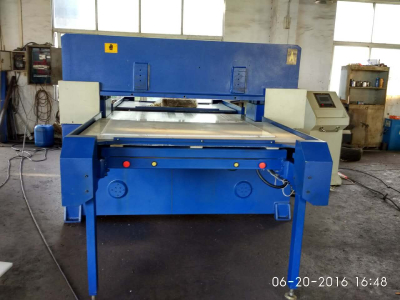

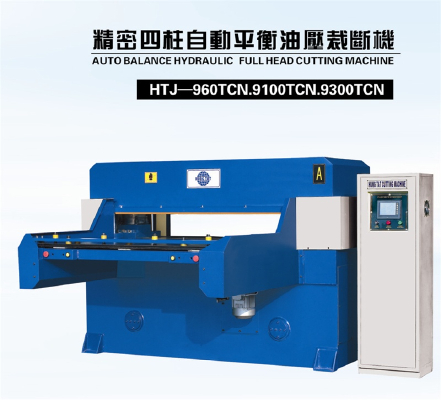

Description: Auto Balance Hydrulic Full Head Cutting Machine
Applications:
This cutting machine is mainly suitable for cutting thermoforming plastic products, luggage and baggage, pearl cotton, sponge, rubber plastic products, auto chairs, super thick material , super high die cutters and so on .
Features:
① Computer control system, touch-screen monitors, simple, fast, accurate.
② two-tank, precision four-post structure of the self-balancing connecting rod which can maintain the equal pressure of each cutting position
③ can combine with double-or single-sided swing arm-type automatic feeding device control system, feed faster, more accurately, so that productivity gains of two to three times
④ when the board pressure down and contact the blade , automatically, it can cut slowly , so that there is no size error between the top material and the bottom material
⑤ the unique setting construction , combine with the cutting knife and cutting height which can make high-speed stroke simple and accurate.
⑥ Special operation---0.3-0.5 seconds-specific synchronization hands operation button, of which , the design is advanced, more safe and more reliable.
⑦ Central automatic lubrication systems which can ensure the precision and durability of the machinery .
Technical Date Sheet :
Model | HTJ-960TCN | HTJ-9100TCN | HTJ-9300TCN |
Cutting Force | 60 Tons | 100 Tons | 300 Tons |
Dimension | 2550*2705*1600mm | 2550*3010*1700mm | 3070*3460*2270mm |
Cutting Area | 610*1600mm | 915*1600mm | 915*1600mm |
Motor | 7.5 kw | 11 kw | 15 kw |
Stroke | 70-240mm | 70-240mm | 70-240mm |
Net Weight | 5000Kg | 7200Kg | 17500Kg |
FAQ
1)What's warranty of hydraulic cutting machine?
12 months Warranty
Life-long maintenance service for die cutting machine
2)What's your after-sales service?
Engineer available to serve machines over seas;
Email and calling service in working hour; 24 hours door to door in domestic.
3)Can we test the our material by your machine free?
Yes, please contact us to send your matrial.
4)How to confirm how much ton pressure is fine?
Always 1m knife line need about 5 ton pressure.
please send your drawing or product photo, we can help you confirm.
5)Can you make dies & PP boards?
Yes, just send your drawing or material.
PP board will come with machine to you.
6)Are you a factory or trading company?
We are a factory and manufacturer
Don't know how many ton you need?
Please contact us!
Don't know how the machine working?
Please contact us to see the video!
