- Size: 2330x1320x1260
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: HONGDA
- Model Number: HTJ-530T
- Weight: 2150.000 kg
- :
- :
- :
- :

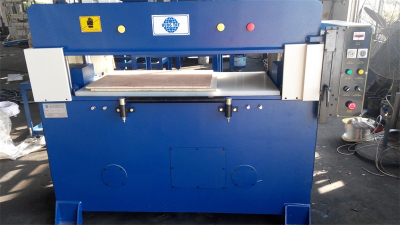

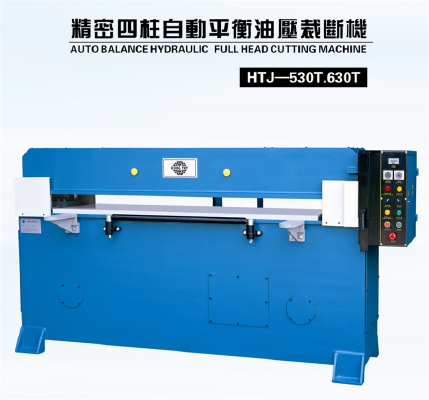

Description: Auto Balance Hydraulic Full Head Cutting Machine
Applications:
This cutting machine is mainly suitable for cutting handbags, rubber plastic products, leather products, stationery products , packing products , electronic packing and so on .
Features:
① two-tank, precision four-post structure of the self-balancing connecting rod which can maintain the equal pressure of each cutting position
② Series 5 machine has super long stroke setting for adapt to the super thick material and super high die cutters.
③ When pressing the cutting board and touching the cutter , it can cut automatically and slowly to make that no size error between the uppermost layer and lowermost layer of the cutting material.
④ the unique setting construction , combine with the cutting knife and cutting height which can make high-speed stroke simple and accurate.
⑤ Central automatic lubrication systems which can ensure the precision and durability of the machinery .
Technical Date Sheet :
Model | HTJ-530T/48 | HTJ-530T/63 | HTJ-630T/48 | HTJ-630T/63 |
Cutting Force | 30 Tons | 30 Tons | 30 Tons | 30 Tons |
Dimension | 1950*1320*1260mm | 2330*1320*1260mm | 1950*1320*1260mm | 2330*1320*1260mm |
Cutting Area | 610*1220mm | 610*1600mm | 610*1220mm | 610*1600mm |
Motor | 2.2 kw | 2.2 kw | 2.2 kw | 2.2 kw |
Stroke | 55-245mm | 55-245mm | 55-165mm | 55-165mm |
Net Weight | 1700Kg | 2150Kg | 1600Kg | 2050Kg |
